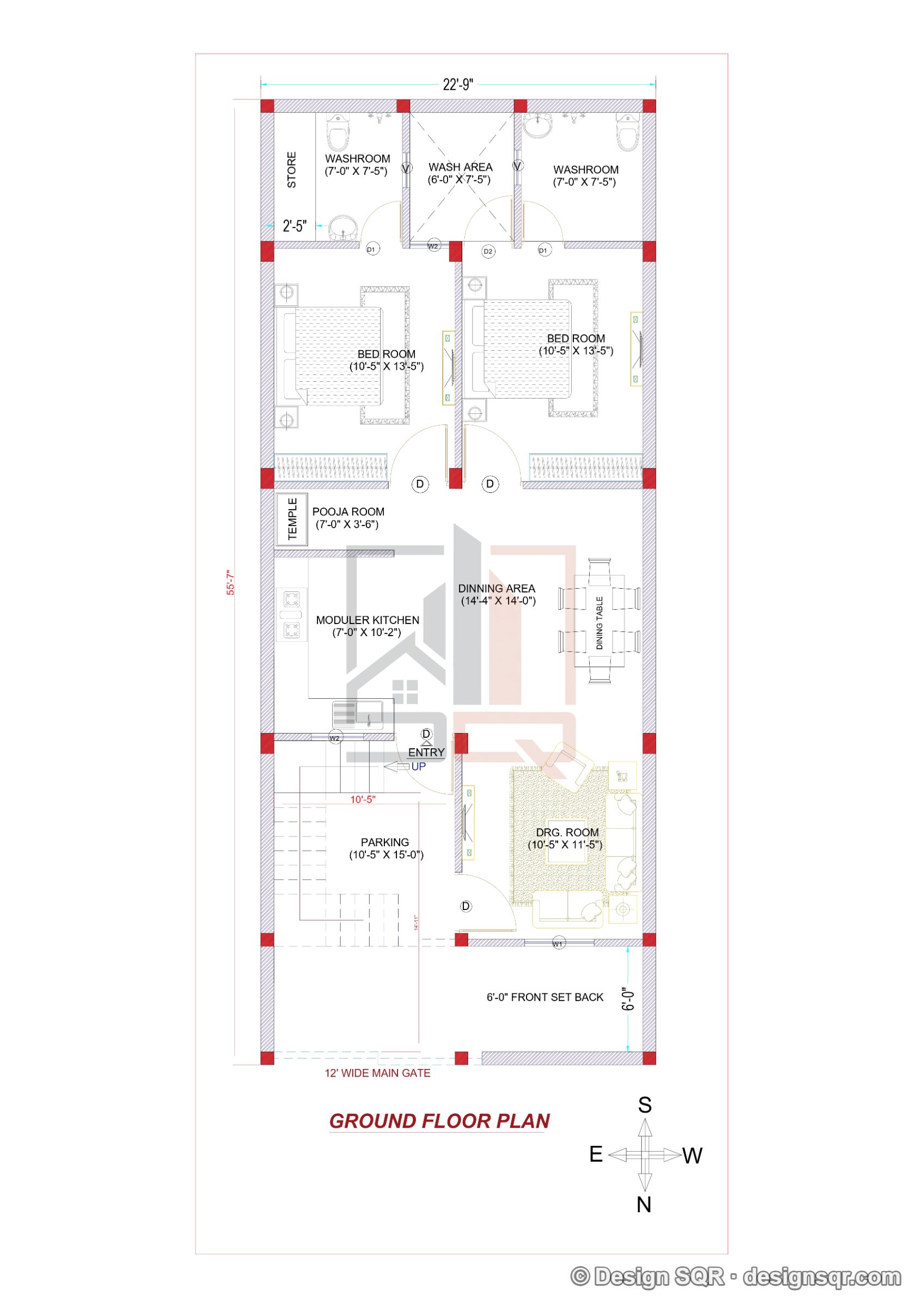

N.K Chaudhary - Delhi - 23'X56' (G) — image 1 of 1
2D Floor PlansVastu compliant

N.K Chaudhary - Delhi - 23'X56' (G)

23x56 ft · 2 BHK · G · North facing

Design code DS1209 — quote it when you call or message us.

Design fee

From ₹2,576

Ask on WhatsAppDownload PDF brochure
Design type
2D Floor Plans
Design code
DS1209
Plot size
23 × 56 ft
Plot area
1,288 sq ft (143 gaj)
Built-up area
1,288 sq ft
Floors
Ground floor
Bedrooms
2 BHK
Toilets
2
Facing
North
Vastu
Vastu compliant

About this design

Residential

What you get

  • 2D plan of every floor, drawn in AutoCAD
  • Room sizes and overall dimensions
  • Furniture layout
  • Doors, windows and staircase marked
  • Adapted to your plot size and facing
  • Ready in 2–3 days
  • Two rounds of changes after we send you the first draft

Free consultation · Reply within one working day

Questions about this design

Can I customise N.K Chaudhary - Delhi - 23'X56' (G)?

Yes. Tap “Customize This Design” and we will adapt room sizes, floors, facing and the elevation to your plot and budget.

Is N.K Chaudhary - Delhi - 23'X56' (G) Vastu compliant?

Yes. This design follows Vastu zoning for the entrance, kitchen, master bedroom and puja room.

Will this design fit my 23x56 plot?

It is drawn for a 23x56 ft plot facing North. Share your exact plot dimensions and setbacks and we will confirm the fit before you pay.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
