Electrical layouts — both floors of a building on a 22×57 plot

Name: Electrical layouts — both floors of a building on a 22×57 plot
Brand: Design SQR
SKU: DS1143

Electrical · 22x57 ft · G+1

Design code DS1143 — quote it when you call or message us.

Design fee

₹1,999

From our rate card

₹1,999 · Electrical and plumbing drawings · Both layouts for one home · built-up area up to 1,250 sq ft

Ask on WhatsAppDownload PDF brochure

Design type: Construction Drawings
Design code: DS1143
Drawing type: Electrical
Plot size: 22 × 57 ft
Plot area: 1,254 sq ft (139 gaj)
Floors: Two floors (G+1)

About this design

Ground and first floor wall electrical plans: ceiling, wall and tube points, geyser points, exhaust fans, power plug points and switch boards, with a legend of the symbols and the switch board heights.

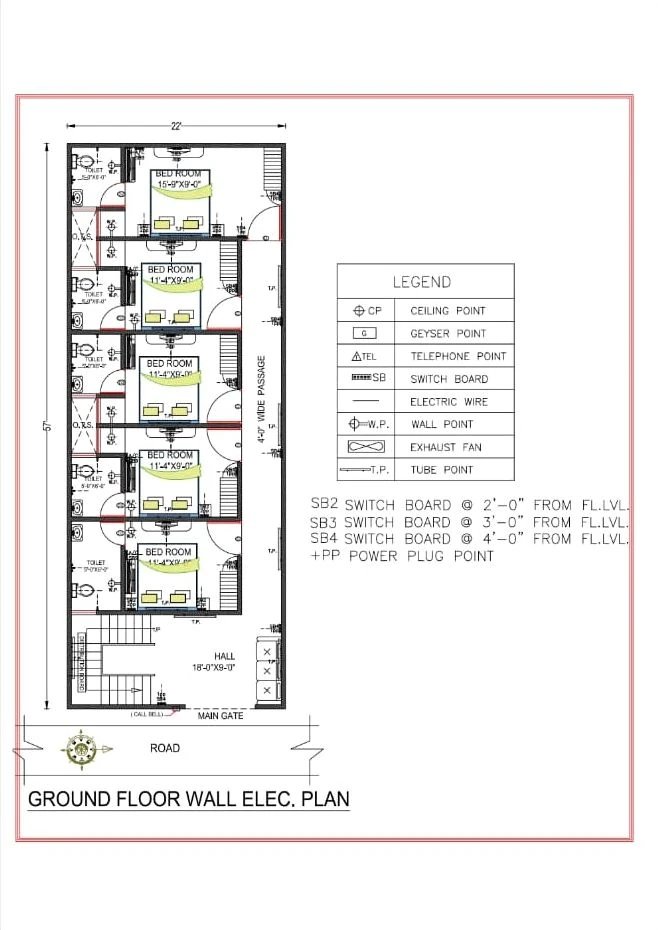

Ground floor layout
First floor layout
Legend of symbols
Switch board heights

What you get

Electrical layout of every floor
Legend of points and switch-board heights
Drawn for your floor plan

Free consultation · Reply within one working day

Questions about this design

Can you prepare these drawings for my house?

Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
