23'X56' (East Facing Plot) Abhinandan Srivastav Ji - Gorakhpur
Working plan · 23x56 ft · G+1
Design code DS1163 — quote it when you call or message us.
- Design type
- Construction Drawings
- Design code
- DS1163
- Drawing type
- Working plan
- Plot size
- 23 × 56 ft
- Plot area
- 1,288 sq ft (143 gaj)
- Floors
- Two floors (G+1)
- Facing
- East
About this design
Residential House
What you get

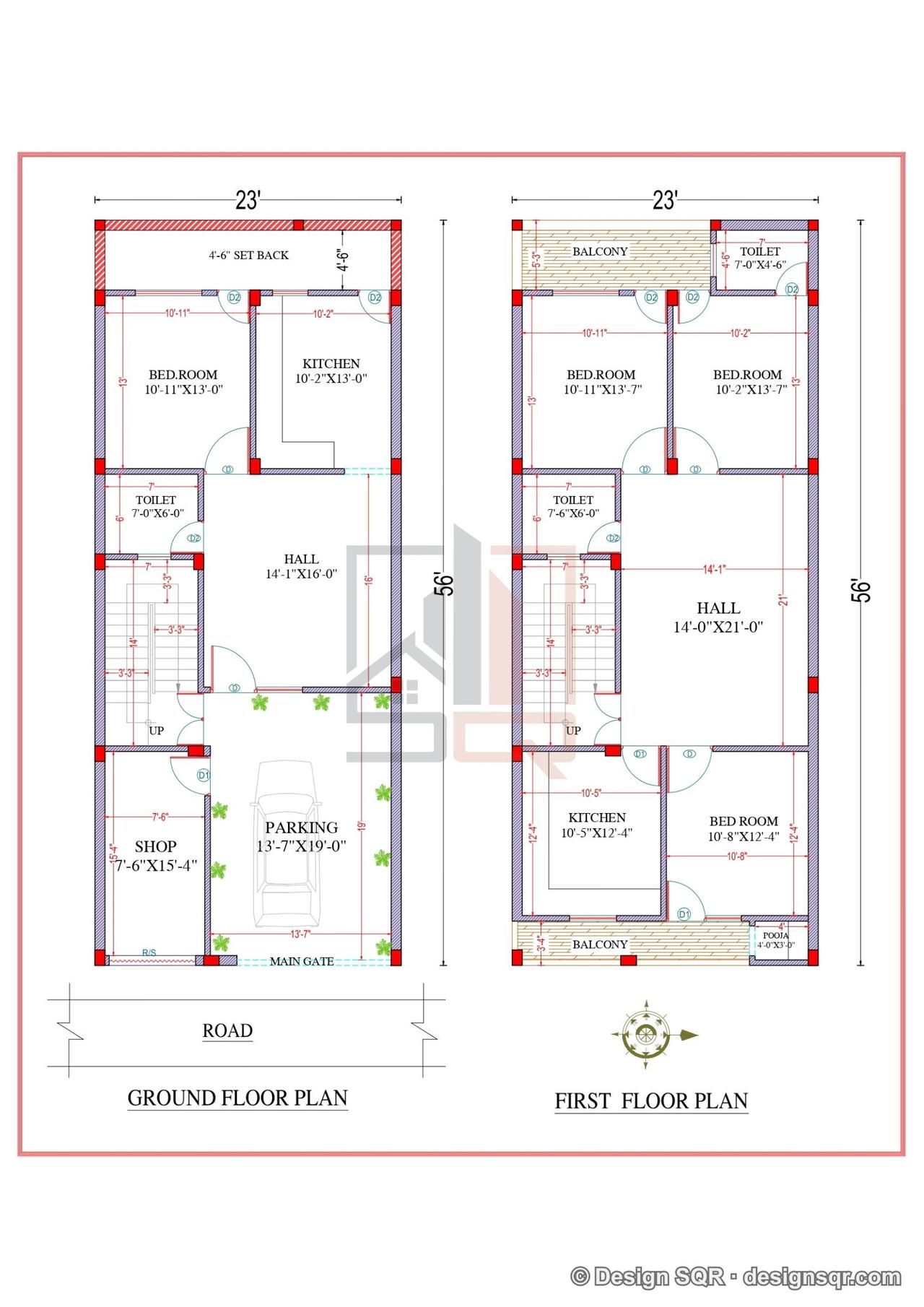

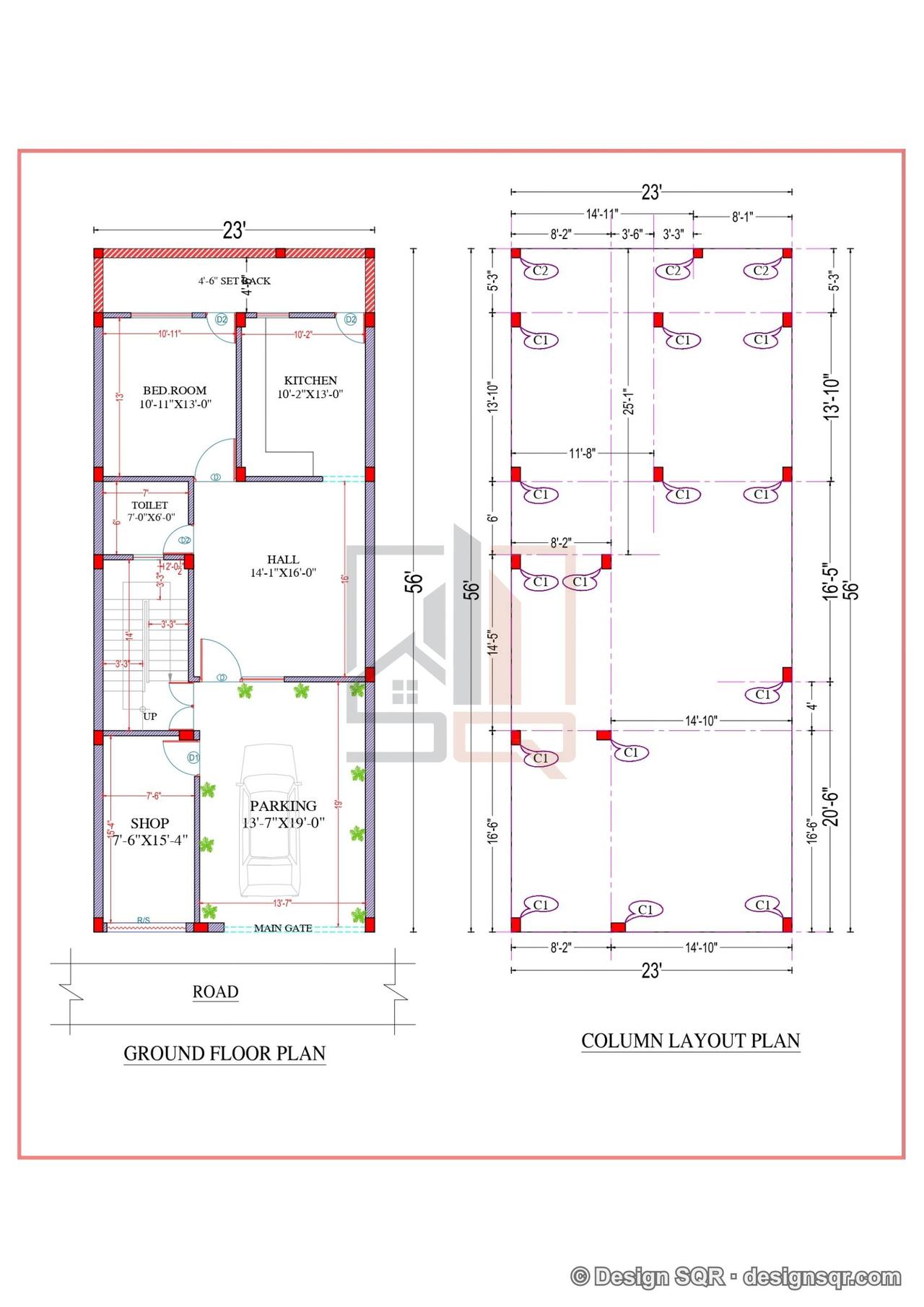

- Working plan with room dimensions

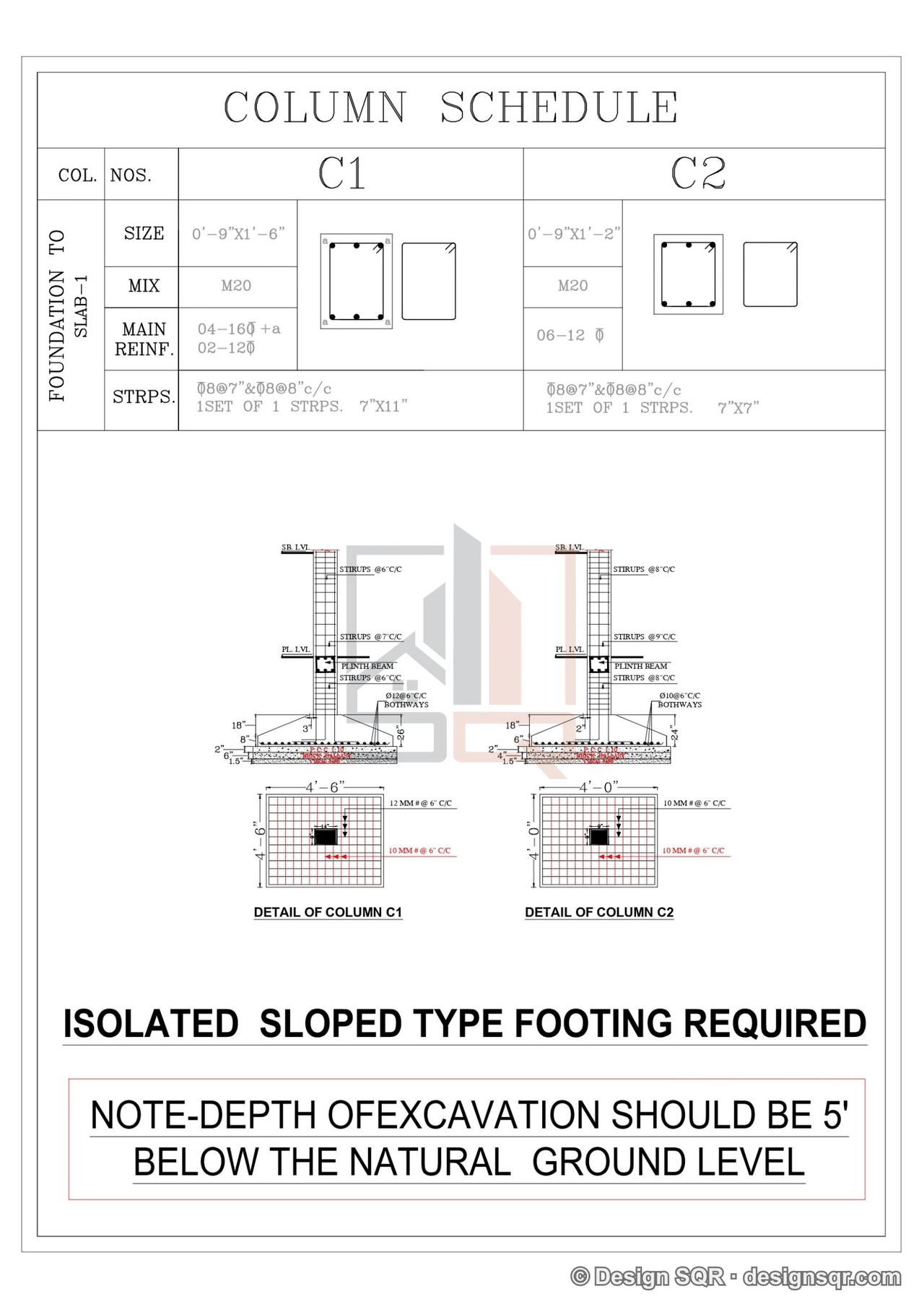

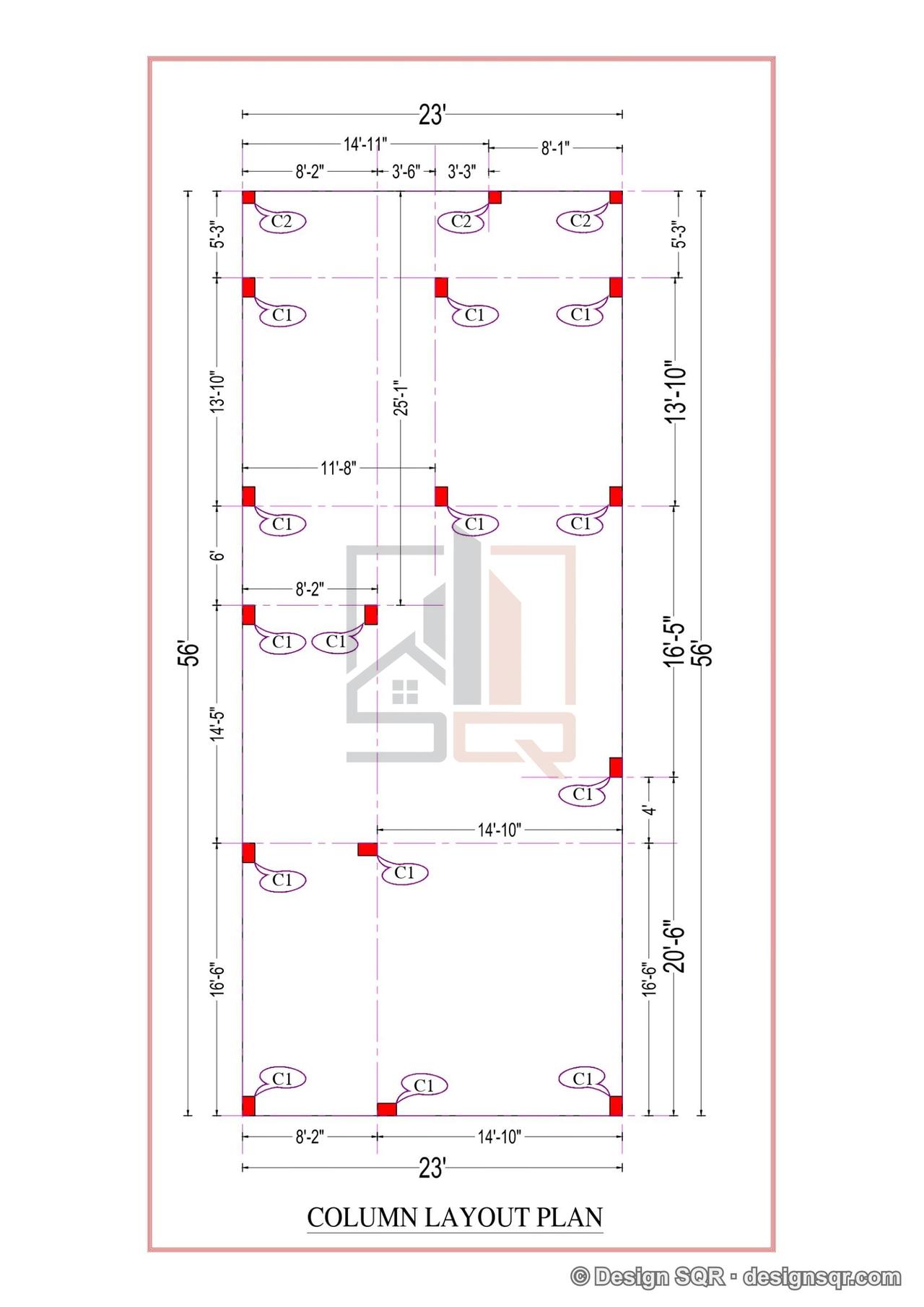

- Columns marked
- Drawn for your floor plan
- Ready in 5 working days
Free consultation · Reply within one working day
Questions about this design
Can you prepare these drawings for my house?
Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.
What happens after I send a request?
A designer calls you within one working day to understand your needs, then shares a quote and timeline.
