Structural drawing set — two-storey residence on a 45×80 plot

Name: Structural drawing set — two-storey residence on a 45×80 plot
Brand: Design SQR
SKU: DS1140

Structural · 45x80 ft · G+1

Design code DS1140 — quote it when you call or message us.

Design fee

From ₹4 per sq ft

From our rate card

₹4 per sq ft · Structural drawings · Built-up area of 4,500 sq ft or more
₹8 per sq ft · Structural drawings · Built-up area under 4,500 sq ft

Ask on WhatsAppDownload PDF brochure

Design type: Construction Drawings
Design code: DS1140
Drawing type: Structural
Plot size: 45 × 80 ft
Plot area: 3,600 sq ft (400 gaj)
Floors: Two floors (G+1)

About this design

Four sheets from the structural set of a two-storey residence: the column layout on a centre-line grid over the 45×80 ft plot, the trench plan with footing pits, and two slab shuttering sheets with the slab panels and beams tagged.

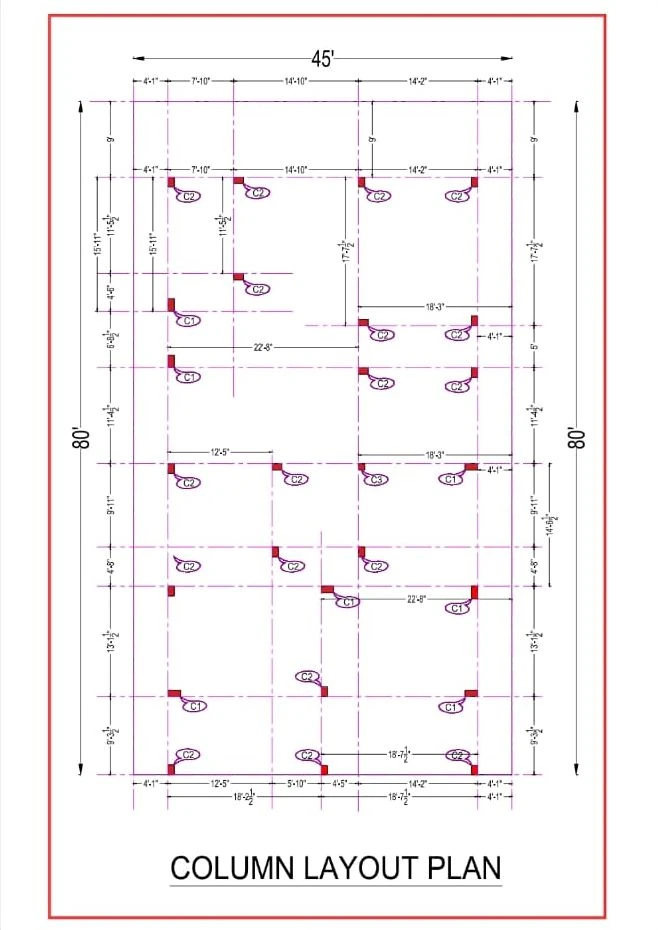

Column layout
Trench plan
Slab shuttering details

What you get

Column layout and footing (trench) plan
Column schedule with reinforcement
Plinth beam and slab drawings
Drawn for your floor plan

Free consultation · Reply within one working day

Questions about this design

Can you prepare these drawings for my house?

Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
