Structural drawing set — stilt-parking building on a 40×46 plot

Structural · 40x46 ft · G+1

Design code DS1149 — quote it when you call or message us.

Design fee

From ₹4 per sq ft

From our rate card

  • ₹4 per sq ft · Structural drawings · Built-up area of 4,500 sq ft or more
  • ₹8 per sq ft · Structural drawings · Built-up area under 4,500 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
Construction Drawings
Design code
DS1149
Drawing type
Structural
Plot size
40 × 46 ft
Plot area
1,840 sq ft (204 gaj)
Floors
Two floors (G+1)

About this design

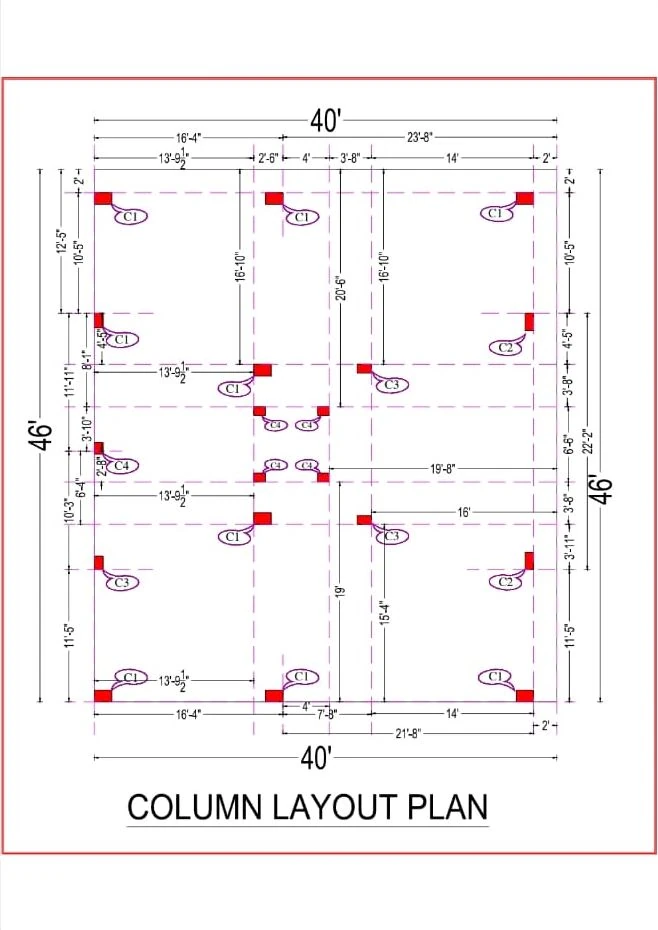

Six sheets from the structural set of a building with stilt parking and a lift: the column layout with 19 columns (four around the lift), the trench plan with footing pits from 4'-0" to 5'-6", the column schedule, the plinth beam plan and the slab shuttering details of the ground and first floors.

  • Column layout
  • Trench plan
  • Column schedule
  • Plinth beam plan
  • Slab shuttering details, two floors
  • Lift core

What you get

  • Column layout and footing (trench) plan
  • Column schedule with reinforcement
  • Plinth beam and slab drawings
  • Drawn for your floor plan

Free consultation · Reply within one working day

Questions about this design

Can you prepare these drawings for my house?

Yes. Send us your floor plan, or ask us to make one, and we prepare the same set of drawings for your plot. The sheets shown here are from one of our projects and show what you receive.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
