45×80 house plan — family home below, two units above — image 1 of 21 / 2
2D Floor Plans

45×80 house plan — family home below, two units above

45x80 ft · G+1

Design code DS1069 — quote it when you call or message us.

Design fee

₹15,599

From our rate card

  • 2D floor plan · Ground + first floor · for a plot of 3,600 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
2D Floor Plans
Design code
DS1069
Plot size
45 × 80 ft
Plot area
3,600 sq ft (400 gaj)
Floors
Two floors (G+1)
Vastu
Adjusted for Vastu on request

About this design

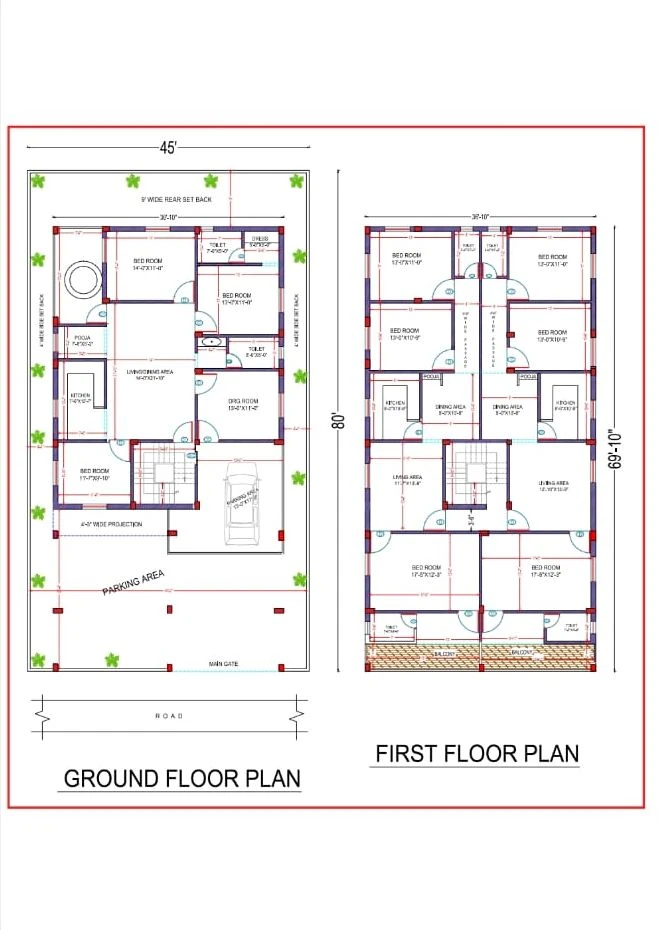

Ground and first floor plans for a 45×80 ft plot. The ground floor is one family home behind covered parking, with the rear and both side set-backs marked; the first floor is two mirrored units around a shared central staircase, with six bedrooms and two kitchens between them.

  • Covered parking
  • Two mirrored units upstairs
  • Shared central staircase
  • Rear and side set-backs marked
  • Furniture layout

What you get

  • 2D plan of every floor, drawn in AutoCAD
  • Room sizes and overall dimensions
  • Furniture layout
  • Doors, windows and staircase marked
  • Adapted to your plot size and facing
  • Ready in 2–3 days
  • Two rounds of changes after we send you the first draft

Free consultation · Reply within one working day

Questions about this design

Can I customise 45×80 house plan — family home below, two units above?

Yes. Tap “Customize This Design” and we will adapt room sizes, floors, facing and the elevation to your plot and budget.

Is 45×80 house plan — family home below, two units above Vastu compliant?

Tell us you want Vastu and we re-plan the entrance, kitchen, bedrooms and puja room to follow it when we adapt the design to your plot.

Will this design fit my 45x80 plot?

It is drawn for a 45x80 ft plot. Share your exact plot dimensions and setbacks and we will confirm the fit before you pay.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
