40×45 house plan — 4 bedrooms, two floors, lift and ground-floor parking — image 1 of 1
2D Floor Plans

40×45 house plan — 4 bedrooms, two floors, lift and ground-floor parking

40x45 ft · 4 BHK · G+1

Design code DS1055 — quote it when you call or message us.

Design fee

₹7,799

From our rate card

  • ₹7,799 · 2D floor plan · Ground + first floor · for a plot of 1,800 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
2D Floor Plans
Design code
DS1055
Plot size
40 × 45 ft
Plot area
1,800 sq ft (200 gaj)
Floors
Two floors (G+1)
Bedrooms
4 BHK
Toilets
4
Vastu
Adjusted for Vastu on request

About this design

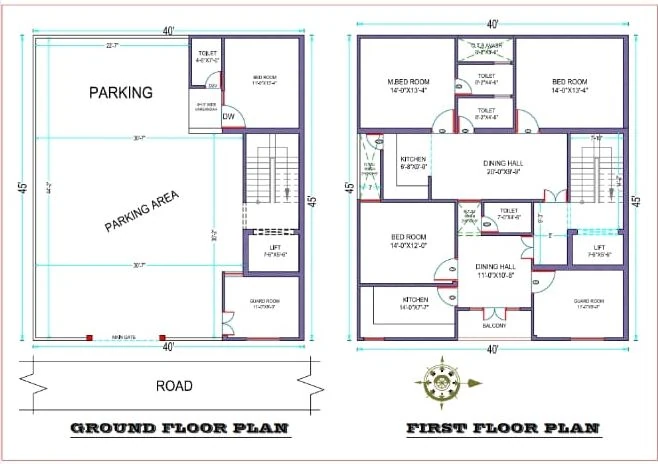

Ground and first floor plans for a 40' × 45' plot. The ground floor is mostly open parking, with one bedroom, a toilet, a lift, the staircase and a guard room beside the main gate. The first floor has two homes: a master bedroom and a bedroom with two toilets, a kitchen and a dining hall of 20'-0" × 9'-9"; and a bedroom with a toilet, a kitchen, a dining hall of 11'-0" × 10'-8" and one more room over the guard room.

  • Lift
  • Ground-floor parking
  • Guard room
  • Two homes on the first floor
  • Balcony
  • Open to sky (OTS) shafts

What you get

  • 2D plan of every floor, drawn in AutoCAD
  • Room sizes and overall dimensions
  • Furniture layout
  • Doors, windows and staircase marked
  • Adapted to your plot size and facing

Free consultation · Reply within one working day

Questions about this design

Can I customise 40×45 house plan — 4 bedrooms, two floors, lift and ground-floor parking?

Yes. Tap “Customize This Design” and we will adapt room sizes, floors, facing and the elevation to your plot and budget.

Is 40×45 house plan — 4 bedrooms, two floors, lift and ground-floor parking Vastu compliant?

Tell us you want Vastu and we re-plan the entrance, kitchen, bedrooms and puja room to follow it when we adapt the design to your plot.

Will this design fit my 40x45 plot?

It is drawn for a 40x45 ft plot. Share your exact plot dimensions and setbacks and we will confirm the fit before you pay.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
