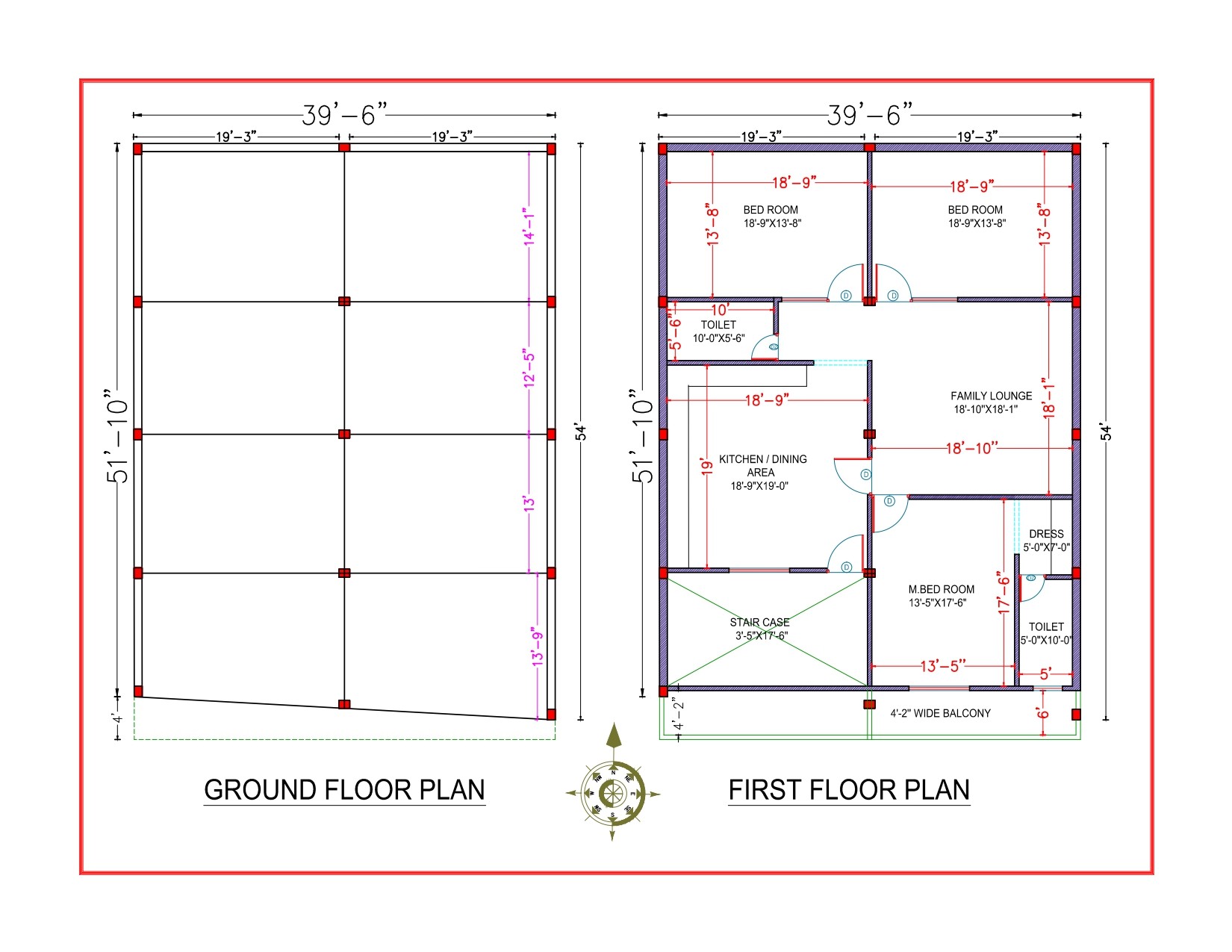

40'X54' (North Facing Plot) Alok Verma Sir - Bhopal — image 1 of 1
2D Floor PlansVastu compliant

40'X54' (North Facing Plot) Alok Verma Sir - Bhopal

40x54 ft · 3 BHK · G+1 · North facing

Design code DS1186 — quote it when you call or message us.

Design fee

From ₹4,499

Ask on WhatsAppDownload PDF brochure
Design type
2D Floor Plans
Design code
DS1186
Plot size
40 × 54 ft
Plot area
2,160 sq ft (240 gaj)
Built-up area
4,320 sq ft
Floors
Two floors (G+1)
Bedrooms
3 BHK
Toilets
2
Facing
North
Vastu
Vastu compliant

About this design

Residential

What you get

  • 2D plan of every floor, drawn in AutoCAD
  • Room sizes and overall dimensions
  • Furniture layout
  • Doors, windows and staircase marked
  • Adapted to your plot size and facing

Free consultation · Reply within one working day

Questions about this design

Can I customise 40'X54' (North Facing Plot) Alok Verma Sir - Bhopal?

Yes. Tap “Customize This Design” and we will adapt room sizes, floors, facing and the elevation to your plot and budget.

Is 40'X54' (North Facing Plot) Alok Verma Sir - Bhopal Vastu compliant?

Yes. This design follows Vastu zoning for the entrance, kitchen, master bedroom and puja room.

Will this design fit my 40x54 plot?

It is drawn for a 40x54 ft plot facing North. Share your exact plot dimensions and setbacks and we will confirm the fit before you pay.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
