20×50 plan — hall or shop below, 2-bedroom home above

20x50 ft · 2 BHK · G+1

Design code DS1065 — quote it when you call or message us.

Design fee

₹5,199

From our rate card

  • ₹5,199 · 2D floor plan · Ground + first floor · plots up to 1,200 sq ft
Ask on WhatsAppDownload PDF brochure
Design type
2D Floor Plans
Design code
DS1065
Plot size
20 × 50 ft
Plot area
1,000 sq ft (111 gaj)
Floors
Two floors (G+1)
Bedrooms
2 BHK
Toilets
2
Vastu
Adjusted for Vastu on request

About this design

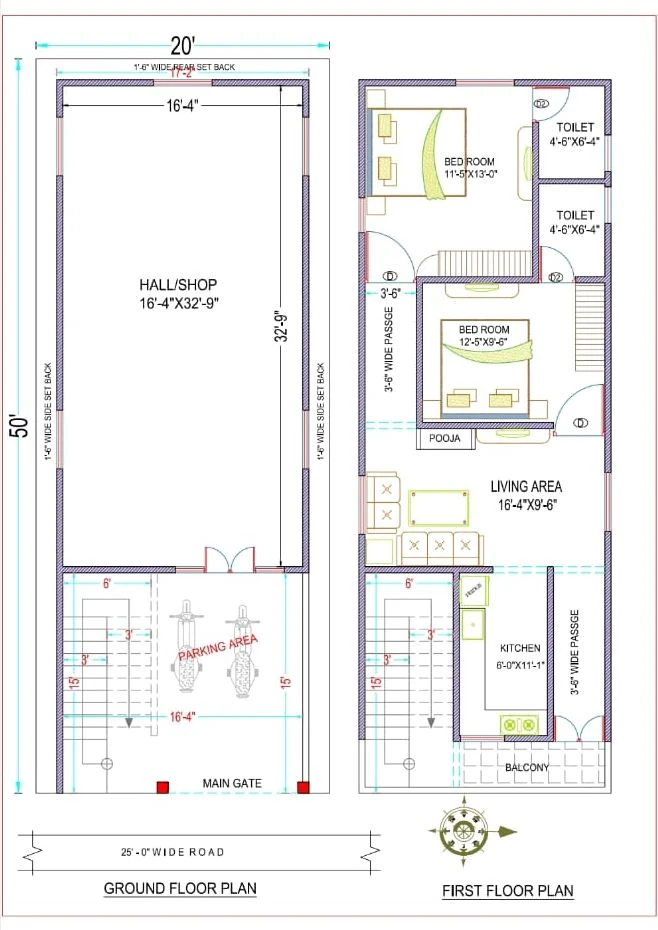

Ground and first floor plans for a 20' × 50' plot on a 25' wide road, with 1'-6" set-backs at the rear and sides. The ground floor is one hall or shop of 16'-4" × 32'-9" with parking and the staircase in front of it. The home is upstairs: bedrooms of 11'-5" × 13'-0" and 12'-5" × 9'-6", two toilets, a living area of 16'-4" × 9'-6", a kitchen of 6'-0" × 11'-1", a pooja and a front balcony.

  • Hall or shop on the ground floor
  • Two-wheeler parking
  • Pooja
  • Front balcony
  • Staircase at the front
  • Rear and side set-backs

What you get

  • 2D plan of every floor, drawn in AutoCAD
  • Room sizes and overall dimensions
  • Furniture layout
  • Doors, windows and staircase marked
  • Adapted to your plot size and facing

Free consultation · Reply within one working day

Questions about this design

Can I customise 20×50 plan — hall or shop below, 2-bedroom home above?

Yes. Tap “Customize This Design” and we will adapt room sizes, floors, facing and the elevation to your plot and budget.

Is 20×50 plan — hall or shop below, 2-bedroom home above Vastu compliant?

Tell us you want Vastu and we re-plan the entrance, kitchen, bedrooms and puja room to follow it when we adapt the design to your plot.

Will this design fit my 20x50 plot?

It is drawn for a 20x50 ft plot. Share your exact plot dimensions and setbacks and we will confirm the fit before you pay.

What happens after I send a request?

A designer calls you within one working day to understand your needs, then shares a quote and timeline.
